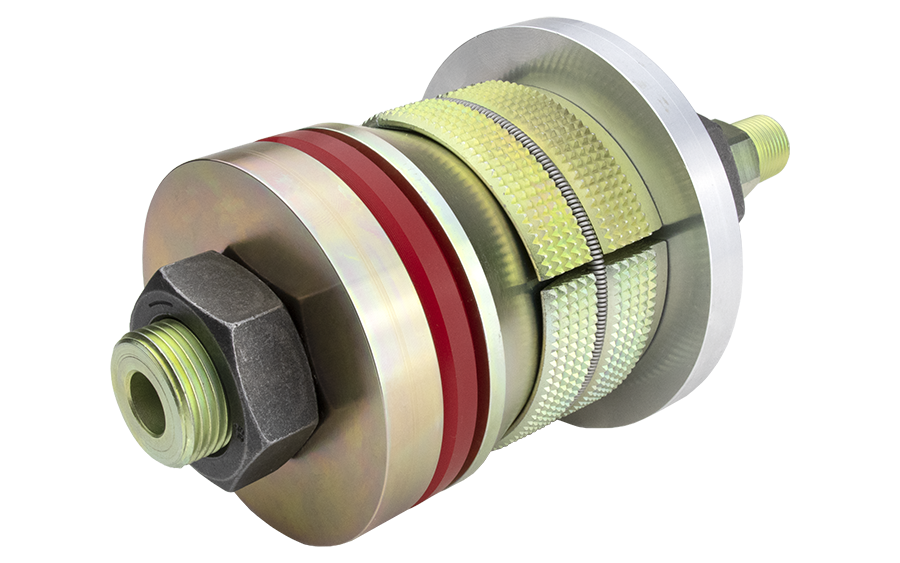

GripTight Max^® Test Plug

Patented dual-serrated grwipper design for safe and reliable testing at high pressures up to 15000 PsiG (1034 BarG). Highly effective for testing high pressure steam systems, high alloy hardened pipe materials, and down hole/well-head piping. Also effective for testing non-metallic materials including Fiberglass Reinforced Plastic (FRP) and Glass Reinforced Epoxy (GRP).

Test Pressure
Up to 15000 PsiG (1034 BarG)*

Size Range
3/8” to 48” NPS (DN10 to DN1200)
Larger sizes available upon request

Standard Seal Material
Urethane**

Features

• Patented dual-serrated gripper design provides more gripping points on pipe I.D. surface

• Hardened shaft, grippers, and cone increases durability, extends service life, and reduces wear

• Ideal for hardened pipe applications up to HRC 32

• Reusable, compatible with hydrostatic or pneumatic testing

To Contact Your Local Sales Office Click Here

*Higher pressures available upon request.

**Alternative seal materials are available including Neoprene, Fluoroelastomer, Silicone, EPDM, Natural Rubber, Nitrile Buna-N, and SBR Buna-S.
